Pallet Racking
Pallet Racking
Check out our extensive range of workspace products. Use the filters to assist your search.
Product categories under Pallet Racking
Pallet Racking Products
Showing all 10 results
-
APEX Selective Pallet Racking
Apex Pallet Racking fully complies with the latest Australian racking code AS 4084-2012 for steel storage racking. Workspace Systems carries a extensive range of sizes and accessories, please see below our standard sizes.
-
Bollard
Available in a HDG or yellow powder coated surface treatment, these bollards are ideal for protecting areas around a warehouse such as roller doors, personal door or emergency exits, services or any other area which needs a barrier to protect against accident impact from a forklift or vehicle. The bollards come standard with a 10 mm base plate allowing for 4 x M16 anchors and are available in both a standard 120mm Diameter (3.5mm wall thickness ) and a heavy duty 160mm diameter (5.25 wall thickness)
-
Coil/Drum Support 838mm
The Workspace Systems Coil / Drum support is designed to aid in the storage pf large cylindrical objects such as coils or 44 gallon drums on pallet racking in a flat horizontal position.
The angled FTB supports are adjustable to help suit an number of different sizes of coils or drums using a simple nut & bolt assembly.
-
Drive-in Pallet Racking
Workspace drive in racking is a high-density storage solution using the FILO principle ( first in last out ). They are designed for customers with a low number of high volume, high turnover lines where time and volume are of the essence. This storage solution allows much higher pallet densities then selective pallet racking and can be customised to suit your application. Workspace pallet racking has also been tested to AS 4084-2012,and our drive drive-in system is also designed according to FEM 10.2.07.
-
End Row Wrap Barriers
The Workspace systems End Wrap is designed to give you the best availability rack protection for the end of your rack. It comes with a full plate steel face panel to prevent low accidental impacts by your forklifts with the end of a single or double row of pallet racking and wraps around the end to provide corner protection as well in one built in unit. 1040mm wide end row wrap is designed to go at the end of a single row and the 2350mm wide end row wrap is designed for a standard 430mm spaced back-to-back aisle.
-
External Pallet Racking
Apex Pallet Racking has been tested to and fully complies with latest Australian racking code AS 4084-2012
Apex Pallet Racking has also been manufactured to meet the following standards:
- FEM 10.2.02 European code of practice for the design of static steel pallet racks
- AS1250-1981 SAA Steel structures code
- AS1538-1988 SAA Cold-form steel structures code
- SEMA-1980 (UK) Storage equipment manufacturers’ association of practice for the design and use of static pallet racking
- RMI-1985 (USA) Rack manufacturers’ institute specification of the design, testing and utilization of industrial steel racks
- AS4084-2012 Steel racking standards and codes that have since been revised or superseded.
Apex Rack selective pallet racking system uses the first in – first out principle to retrieve pallets.
Numerous racking accessories such as mesh decks, boards with board supports, rack protection etc. are available. Ask us in store today.
-
Fork Entry Bars
Our fork entry bars are designed to provide forklift access for un-palletised goods such as plasterboard ad chipboard.
These entry bars sit above the beam by 100mm. Each fork entry bar is designed to hold 500kg UDL each.
A safer solution then using wooden gluts / chocks because the entry bars lock into position over the beams. This prevents any movement on the smooth beam surface.
-
Galvanised Mesh Cage
Galvanised Mesh Cage, 1150mm Long x 1150mm Wide High. Our galvanised mesh cages are an excellent form of warehouse and yard storage. These units are stackable as well as having the capability of being stored in a pallet rack. Each unit is capable of being folded down for east storage when not in use. These units are constructed of 6mm mesh all over to ensure a great strength to weight ratio.
-

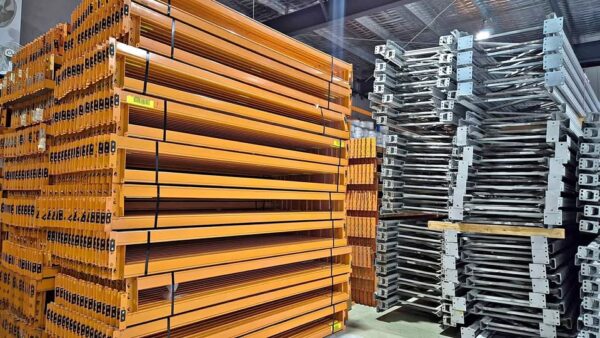

Pallet Racking Frames
Our frames have been tested to be compliant to and exceed the requirement of AS4084:2012. A number of steel thickness and post profiles are available. Our Frames use high tensile steel to ensure that our standard frames can can take higher capacities then traditional steel frames. With stocked heights ranging from 1829mm to 7315mm and…
-
Wire Cage for Pallets
Workspace Systems wire cage for pallets adds flexibility to your pallet storage.
Designed to fit over standard Australian 1165x1165mm square pallets. This cage allows you to contain awkward small items such as spheres and cylinders that are difficult to palletise in normal situations.
Versatile and easily stored flat, wire cages for pallets are a great idea to allow your warehouse to make the maximum use of space at minimal additional cost.
Each unit is capable of being folded down for easy storage when not in use. These units are constructed of 6mm mesh all over to ensure a great strength to weight ratio.
